High Dynamic Range (HDR) video encoding requires careful attention to detail to preserve the high brightness, contrast, and color accuracy that HDR content offers. FFmpeg, with its wide array of encoding options and support for HDR-specific standards, is an effective tool for encoding HDR video.

Setting Up FFmpeg for HDR Encoding

FFmpeg supports HDR video encoding with formats like HEVC (H.265) and VP9, which are commonly used for delivering HDR content. To get started, ensure you are using an FFmpeg build that supports HDR encoding and includes the necessary libraries (e.g., x265 for HEVC encoding).

Encoding HDR10 Video

For HDR10 encoding, the main tasks include applying the PQ (Perceptual Quantizer) transfer function and specifying the correct color primaries (Rec. 2020). The following command shows how to encode an HDR10 video with FFmpeg:

code
ffmpeg -i input.mov -c:v libx265 -preset slow -x265-params "colorprim=bt2020:transfer=smpte2084:colormatrix=bt2020nc" -c:a aac output_hdr10.mp4
  • colorprim=bt2020: Sets the color primaries to Rec. 2020, the standard for HDR.
  • transfer=smpte2084: Applies the PQ transfer function, required for HDR10.
  • colormatrix=bt2020nc: Specifies the non-constant luminance matrix for HDR.

This command ensures that the HDR10 content is encoded with the proper color profile and transfer function.

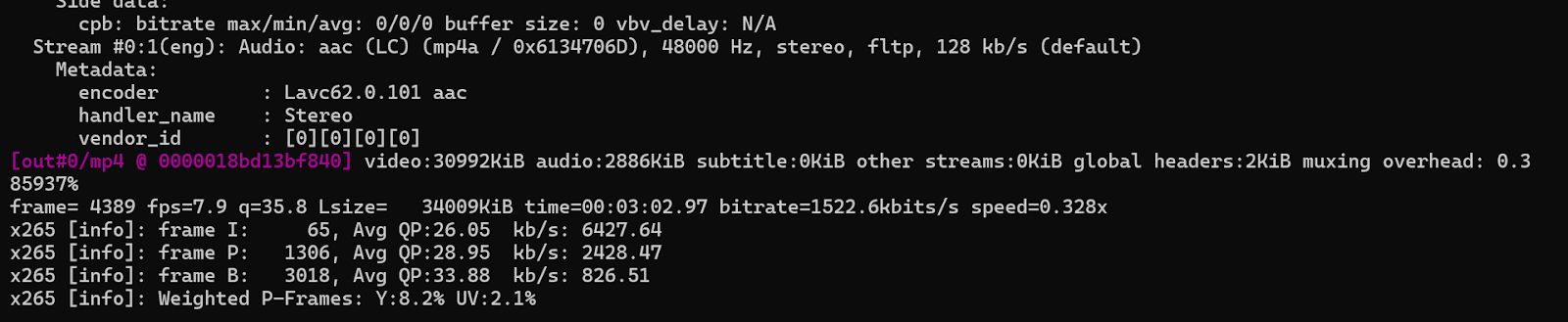

FFmpeg Output for HDR10 Encoding with Rec. 2020 Color Space and SMPTE 2084 Transfer Function
Banner

Encoding with HLG for Broadcast

Hybrid Log-Gamma (HLG) is widely used in broadcast environments due to its backward compatibility with SDR displays. HLG can be encoded using HEVC, and FFmpeg can be configured to apply the HLG transfer function.

To encode HLG HDR content, use the following FFmpeg command:

code
ffmpeg -i input.mov -c:v libx265 -x265-params "transfer=hlg:colorprim=bt2020:colormatrix=bt2020nc" -c:a aac output_hlg.mp4
  • transfer=hlg: Applies the HLG transfer function.
  • colorprim=bt2020: Uses Rec. 2020 color primaries.
  • colormatrix=bt2020nc: Specifies the color matrix for HDR encoding.

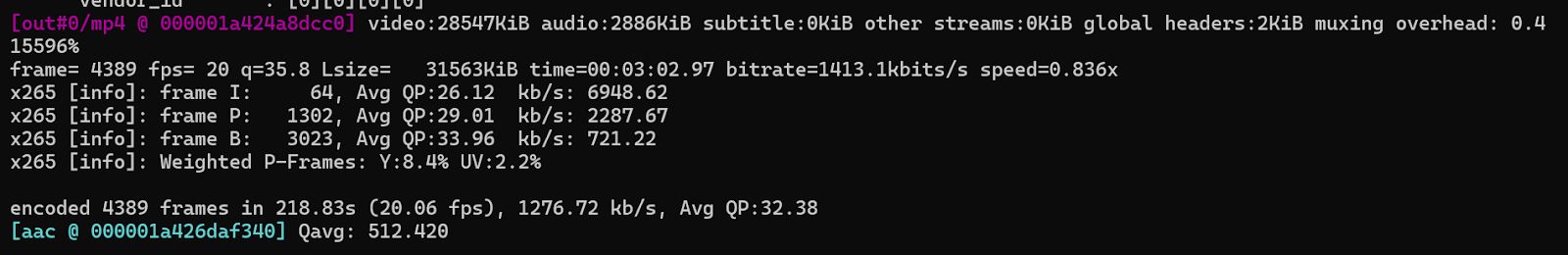

FFmpeg Output for HLG Encoding with Rec. 2020 Color Primaries and bt2020nc Matrix

Bitrate Considerations for HDR Encoding

HDR video often requires higher bitrates compared to SDR video due to the increased amount of data needed to preserve the finer details in brightness and color. When encoding HDR content, the bitrate should be adjusted to ensure high-quality output.

  • For HDR10: Aim for a bitrate of 20"40 Mbps for 1080p HDR10 content, and up to 80"100 Mbps for 4K HDR10 content.
  • For Dolby Vision: The bitrate can be higher due to dynamic metadata, with similar ranges as HDR10 depending on resolution and scene complexity.
  • For HLG: A bitrate similar to HDR10 can be used, but make sure to test across different devices to ensure consistent quality.

Use the -b:v option in FFmpeg to specify the bitrate for encoding:

code
ffmpeg -i input.mov -c:v libx265 -b:v 25M -c:a aac output_hdr10.mp4

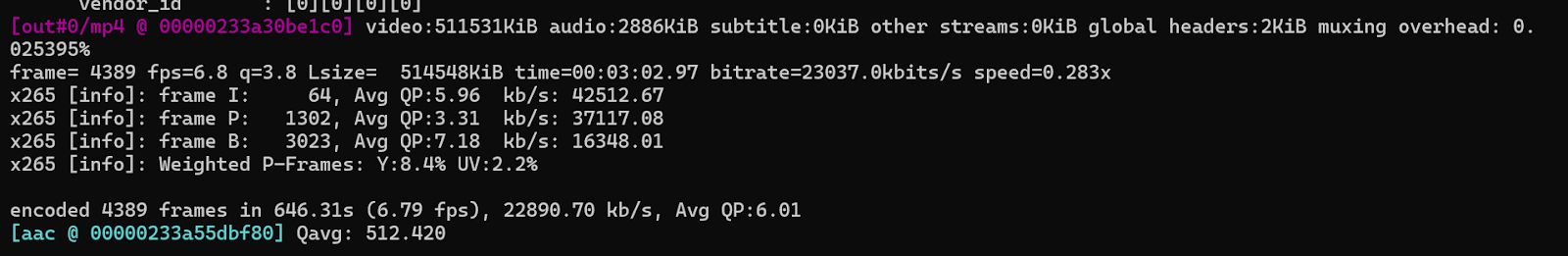

FFmpeg Output Demonstrating 25 Mbps Bitrate for HDR10 Encoding

Enabling HDR10+ or Dolby Vision (Experimental Use)

HDR10+ and Dolby Vision require dynamic metadata support and typically need custom toolchains. While FFmpeg does not natively support full Dolby Vision encoding, HDR10+ encoding is possible with patched x265 builds. For example:

code
ffmpeg -i input.mov -c:v libx265 -x265-params "hdr10_opt=1:hdr10_plus=1" -c:a copy output_hdr10plus.mp4

Ensure that your FFmpeg and x265 builds are HDR10+ enabled.

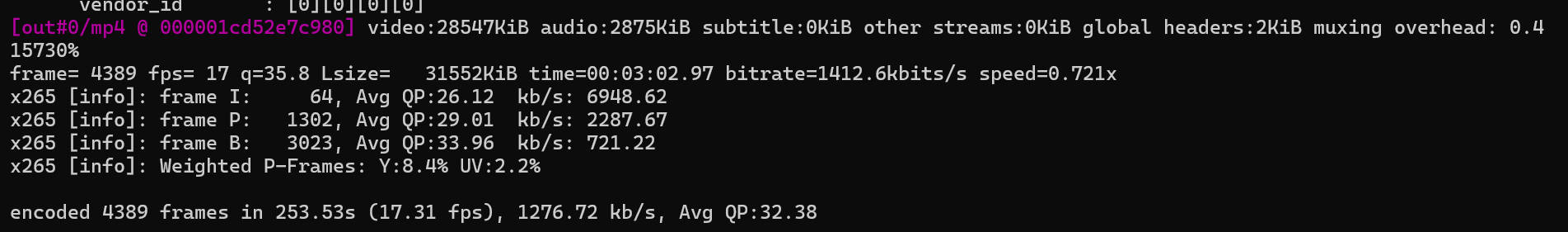

FFmpeg HDR10+ Encoding Output Using Patched x265 Build (Experimental Setup)
